BARDOLINO ANGOLO

  • high quality aluminium corner profile, anodised

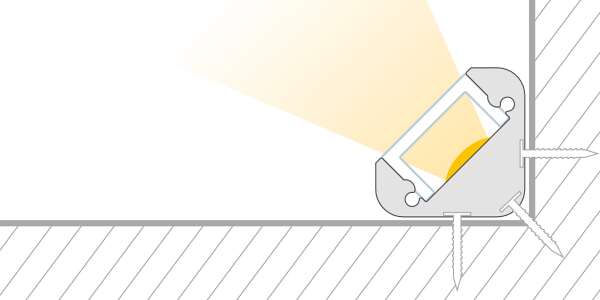

  • especially designed for corner constructions, e.g. suitable as under-cabinet luminaire or stair lighting
  • in combination with an opal white cover and compatible LEDlight flex, a homogenous light distribution can be achieved
  • RAL powder coating on request


  • aluminium anodized
  • Housing/colour: Aluminium



ANr*DimensionsDatasheets
62399461 1000×23,7×16,7 mm (l×w×h)
62399462 2010×23,7×16,7 mm (l×w×h)
62399463 3020×23,7×16,7 mm (l×w×h)
62399465 5030×23,7×16,7 mm (l×w×h)
Please consider linear extension with temperature variations
ANrDescriptionDimensionsHousing/
colour
Datasheets
62399301 BARdolino, Diffuser opal, for a homogenous and glare-free light distribution1000×14,8×8 mm (l×w×h)transparent opal white
62399302 BARdolino, Diffuser opal, for a homogenous and glare-free light distribution2010×14,8×8 mm (l×w×h)transparent opal white
62399303 BARdolino, Diffuser opal, for a homogenous and glare-free light distribution3020×14,8×8 mm (l×w×h)transparent opal white
62399305 BARdolino, Diffuser opal, for a homogenous and glare-free light distribution5030×14,8×8 mm (l×w×h)transparent opal white
62399371 BARdolino, Diffuser satined, for a diffused light distribution and concealment of the technology1000×14,8×8 mm (l×w×h)transparent satined
62399372 BARdolino, Diffuser satined, for a diffused light distribution and concealment of the technology2010×14,8×8 mm (l×w×h)transparent satined
62399373 BARdolino, Diffuser satined, for a diffused light distribution and concealment of the technology3020×14,8×8 mm (l×w×h)transparent satined
62399375 BARdolino, Diffuser satined, for a diffused light distribution and concealment of the technology5030×14,8×8 mm (l×w×h)transparent satined
62399401 BARdolino, Diffuser clear, for max. light yield and protection of the LED strip1000×14,8×8 mm (l×w×h)transparent clear
62399402 BARdolino, Diffuser clear, for max. light yield and protection of the LED strip2010×14,8×8 mm (l×w×h)transparent clear
62399403 BARdolino, Diffuser clear, for max. light yield and protection of the LED strip3020×14,8×8 mm (l×w×h)transparent clear
62399405 BARdolino, Diffuser clear, for max. light yield and protection of the LED strip5030×14,8×8 mm (l×w×h)transparent clear
62399311 BARdolino, Diffuser opal, walkable up to 500 kg, break-proof/impact resistant1000×14,8×8 mm (l×w×h)transparent opal white
62399312 BARdolino, Diffuser opal, walkable up to 500 kg, break-proof/impact resistant2010×14,8×8 mm (l×w×h)transparent opal white
62399313 BARdolino, Diffuser opal, walkable up to 500 kg, break-proof/impact resistant3020×14,8×8 mm (l×w×h)transparent opal white
62399315 BARdolino, Diffuser opal, walkable up to 500 kg, break-proof/impact resistant5030×14,8×8 mm (l×w×h)transparent opal white
62379301 BARdolino, Diffuser satined, 30° lens for a directed light focus1000×14,8×8 mm (l×w×h)transparent satined
62379302 BARdolino, Diffuser satined, 30° lens for a directed light focus2010×14,8×8 mm (l×w×h)transparent satined
62379303 BARdolino, Diffuser satined, 30° lens for a directed light focus3020×14,8×8 mm (l×w×h)transparent satined
62379305 BARdolino, Diffuser satined, 30° lens for a directed light focus5030×14,8×8 mm (l×w×h)transparent satined
62379601 BARdolino, Diffuser satined, 60° lens for a directed light focus1000×14,8×8 mm (l×w×h)transparent satined
62379602 BARdolino, Diffuser satined, 60° lens for a directed light focus2010×14,8×8 mm (l×w×h)transparent satined
62379603 BARdolino, Diffuser satined, 60° lens for a directed light focus3020×14,8×8 mm (l×w×h)transparent satined
62379605 BARdolino, Diffuser satined, 60° lens for a directed light focus5030×14,8×8 mm (l×w×h)transparent satined
62399361 BARdolino, Diffuser high, opal, 180°, for an allround homogenous light distribution1000×18,4×17,8 mm (l×w×h)transparent opal white
62399362 BARdolino, Diffuser high, opal, 180°, for an allround homogenous light distribution2010×18,4×17,8 mm (l×w×h)transparent opal white
62399363 BARdolino, Diffuser high, opal, 180°, for an allround homogenous light distribution3020×18,4×17,8 mm (l×w×h)transparent opal white
62399365 BARdolino, Diffuser high, opal, 180°, for an allround homogenous light distribution5030×18,4×17,8 mm (l×w×h)transparent opal white
62399301, 62399302, 62399303, 62399305, 62399371, 62399372, 62399373, 62399375, 62399401, 62399402, 62399403, 62399405, 62399311, 62399312, 62399313, 62399315, 62399361, 62399362, 62399363, 62399365: Please consider linear extension with temperature variations
ANrDescriptionMounting
type
Housing/
colour
Datasheets
62399466 Profile End Caps, 2x BARdolino end cap Angolo profile, incl. screwsschraubbarAluminium
62399369 Profile End Caps, 2x BARdolino end caps frosted for plastic cover high 180°schraubbartransparent opal
62399467 Profile brackets, Angolo brackets set, 2 brackets, incl. 4 screws, suitable for BARdolino Angolo profileschraubbartransparent
