BARDOLINO LAMINATO

  • high quality anodised aluminium floor or under cabinet profile
  • specially developed for the seamless integration into parquet and laminate floors
  • also useable for wall mounting in wood panelling
  • RAL powder coating on request
  • in combination with a frosted white cover and compatible LEDlight flex, a homogenous light distribution can be achieved

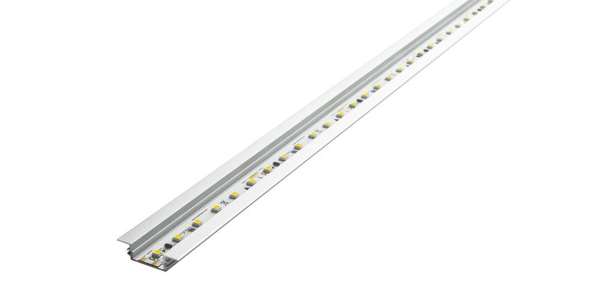

  • BARdolino Laminato aluminium luminaire profile



ANr*DimensionsDatasheets
62399591 1000×30×8,9mm (l×w×h)
62399592 2010×30×8,9mm (l×w×h)
62399593 3020×30×8,9mm (l×w×h)
62399595 5030×30×8,9mm (l×w×h)
Please consider linear extension with temperature variations
ANrDescriptionDimensionsDatasheets
62399301 Cover opal white, cover opal white, for a homogenous and glare-free light distribution1000×14,8×8mm (l×w×h)
62399302 Cover opal white, for a homogenous and glare-free light distribution2010×14,8×8mm (l×w×h)
62399303 Cover opal white, for a homogenous and glare-free light distribution3020×14,8×8mm (l×w×h)
62399305 Cover opal white, for a homogenous and glare-free light distribution5030×14,8×8mm (l×w×h)
62399311 cover opal white, break-proof/impact resistant, walkable up to 500 kg1000×14,8×8mm (l×w×h)
62399312 cover opal white, break-proof/impact resistant, walkable up to 500 kg2010×14,8×8mm (l×w×h)
62399313 cover opal white, break-proof/impact resistant, walkable up to 500 kg3020×14,8×8mm (l×w×h)
62399315 cover opal white, break-proof/impact resistant, walkable up to 500 kg5030×14,8×8mm (l×w×h)
62399361 cover high opal white, 180°, cover high, opal white, PMMA, 180°, for an allround homogenous light distribution1000×18,4×17,8mm (l×w×h)
62399362 cover high opal white, 180°2010×18,4×17,8mm (l×w×h)
62399363 cover high opal white, 180°3020×18,4×17,8mm (l×w×h)
62399365 cover high opal white, 180°5030×18,4×17,8mm (l×w×h)
62399371 cover satined, cover satined, PMMA, for a diffused light distribution and concealment of the technology1000×14,8×8mm (l×w×h)
62399372 cover satined2010×14,8×8mm (l×w×h)
62399373 cover satined3020×14,8×8mm (l×w×h)
62399375 cover satined5030×14,8×8mm (l×w×h)
62399401 cover clear, cover clear, PMMA, for maximum light yield and protection of the LED strip1000×14,8×8mm (l×w×h)
62399402 cover clear, cover clear, PMMA, for maximum light yield and protection of the LED strip2010×14,8×8mm (l×w×h)
62399403 cover clear, cover clear, PMMA, for maximum light yield and protection of the LED strip3020×14,8×8mm (l×w×h)
62399405 cover clear, cover clear, PMMA, for maximum light yield and protection of the LED strip5030×14,8×8mm (l×w×h)
Please consider linear extension with temperature variations
