GARGANO

  • high quality aluminium profile, anodised

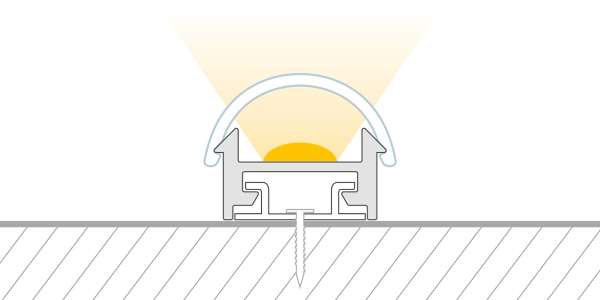

  • flexibly useable as surface-mounted or luminaire profile
  • very flat design
  • due to the half-round cover the profile is barely visible and therefore ideal for integration into furniture or suitable as a luminary
  • in combination with an opal white cover and compatible LEDlight flex, a homogenous light distribution can be achieved
  • RAL powder coating on request


  • aluminium anodized
  • Housing/colour: aluminium



ANr*DimensionsDatasheets
62399901 1000×17,9×9,5 mm (l×w×h)
62399902 2010×17,9×9,5 mm (l×w×h)
62399903 3020×17,9×9,5 mm (l×w×h)
62399905 5030×17,9×9,5 mm (l×w×h)
Please consider linear extension with temperature variations
ANrDescriptionDimensionsHousing/
colour
Datasheets
62395901 GARgano, Diffuser circular, high, opal, for glarefree light distribution1000×27×27 mm (l×w×h)transparent opal white
62395902 GARgano, Diffuser circular, high, opal, for glarefree light distribution2000×27×27 mm (l×w×h)transparent opal white
62395903 GARgano, Diffuser circular, high, opal, for glarefree light distribution3000×27×27 mm (l×w×h)transparent opal white
62395905 GARgano, Diffuser circular, high, opal, for glarefree light distribution5000×27×27 mm (l×w×h)transparent opal white
62396901 GARgano, Diffuser semi-circular, satined, for a diffused light distribution and concealment of the technology1000×20×10 mm (l×w×h)transparent satined
62397901 GARgano, Diffuser semi-cirualar, opal, for a homogenous and glare-free light distribution1000×20×10 mm (l×w×h)transparent opal white
62398901 GARgano, Diffuser semi circular, clear, for maximum light yield and protection of the LED strip1000×20×10 mm (l×w×h)transparent clear
62389961 GARgano, Diffuser clear, 30° lens for a directed light focus1000×20×10 mm (l×w×h)transparent
62396902 GARgano, Diffuser semi-circular, satined, for a diffused light distribution and concealment of the technology2010×20×10 mm (l×w×h)transparent satined
62397902 GARgano, Diffuser semi-cirualar, opal, for a homogenous and glare-free light distribution2010×20×10 mm (l×w×h)transparent opal white
62398902 GARgano, Diffuser semi circular, clear, for maximum light yield and protection of the LED strip2010×20×10 mm (l×w×h)transparent clear
62396903 GARgano, Diffuser semi-circular, satined, for a diffused light distribution and concealment of the technology3020×20×10 mm (l×w×h)transparent satined
62397903 GARgano, Diffuser semi-cirualar, opal, for a homogenous and glare-free light distribution3020×20×10 mm (l×w×h)transparent opal white
62398903 GARgano, Diffuser semi circular, clear, for maximum light yield and protection of the LED strip3020×20×10 mm (l×w×h)transparent clear
62389962 GARgano, Diffuser clear, 30° lens for a directed light focus2010×20×10 mm (l×w×h)transparent
62396905 GARgano, Diffuser semi-circular, satined, for a diffused light distribution and concealment of the technology5030×20×10 mm (l×w×h)transparent satined
62397905 GARgano, Diffuser semi-cirualar, opal, for a homogenous and glare-free light distribution5030×20×10 mm (l×w×h)transparent opal white
62398905 GARgano, Diffuser semi circular, clear, for maximum light yield and protection of the LED strip5030×20×10 mm (l×w×h)transparent clear
62389963 GARgano, Diffuser clear, 30° lens for a directed light focus3020×20×10 mm (l×w×h)transparent
62389965 GARgano, Diffuser clear, 30° lens for a directed light focus5030×20×10 mm (l×w×h)transparent
62396901, 62397901, 62398901, 62389961, 62396902, 62397902, 62398902, 62396903, 62397903, 62398903, 62389962, 62396905, 62397905, 62398905, 62389963, 62389965: Please consider linear extension with temperature variations
ANrDescriptionMounting
type
Housing/
colour
Datasheets
62399963 Profile End Capssteckbarwhite
62399908 Vandal-proof mounting, 1x vandal-proof mounting, aluminium, anodised, the alu-profile is fixed to the mounting with a hex keyschraubbaraluminium
62399916 Profile brackets, 2x brackets for concrete walls, incl. 4 screws and anchor bolt, suitable for GARgano, Walllight 2.0schraubbartransparent
62399914 Profile brackets, 2x brackets, incl. 4 screws, dimensions: 34 x 13 x 5mm, suitable for GARgano, GARliano profileschraubbartransparent
62399906 Profile brackets, holding set, 2x brackets + 2x screws, 306 stainless steel, suitable for GARgano, GARliano, CATania profileschraubbarEdelstahl
65400100 Profile brackets, suspension for ceiling installation (2x 150cm wire cable Ø 1mm with M4 thread, 2x mounting plates, 2x suspension brackets)Abhängeseilsilver
65400150 Profile brackets, suspension for ceiling installation (4x 150cm wire cable Ø 1mm with M4 thread, 4x mounting plates, 4x suspension brackets) for profile lenghts > 3mAbhängeseilsilver
62399918 Profile brackets, 1x supermagnet holder incl. locking screw, suitable for GARgano, GARliano profileschraubbarsilbergrau
62399919 Profile brackets, 1x profile connector, incl. locking screws, suitable for GARgano, GARliano, CATania profileschraubbar
62399920 Profile brackets, 2x 45°-clips for mounting in corner, transparent, incl. screws, suitable for GARgano, GARliano profileschraubbartransparent
62399935 Profile brackets, 2x 45°-clips for mounting in corner, transp., incl. 4 dowels + 4 screws, for GARgano, GARliano profileschraubbartransparent
62399936 Profile brackets, 1x profile 90°-connector, incl. 2 locking screws, suitable for GARgano, GARliano profileschraubbarsilbergrau
62399912 Profile End Caps, 2x GARgano end cap greysteckbarsilver
