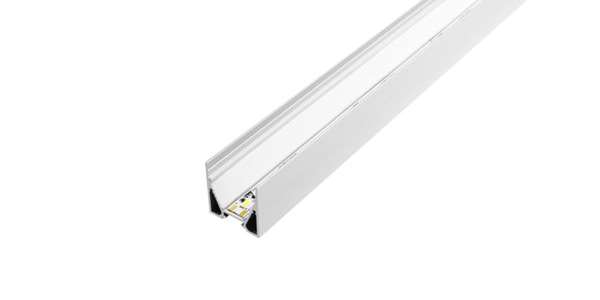

CATANIA 3030

  • high quality aluminium profile, anodised
  • flexibly useable as surface-mounted or luminaire profile
  • with two parallel hollow spaces which can be used as concealed cable channels
  • increased light output through integrated reflector
  • in combination with the optional reflector stripe the light output can be increased by up to 20 %
  • in combination with an opal white cover and compatible LEDlight flex, a homogenous light distribution can be achieved
  • RAL powder coating on request





ANr*DescriptionDimensionsHousing/
colour
Datasheets
62399811 aluminium anodized1000×30×30 mm (l×w×h)natural tone
62399812 aluminium anodized2010×30×30 mm (l×w×h)natural tone
62399813 aluminium anodized3020×30×30 mm (l×w×h)natural tone
62399815 aluminium anodized5030×30×30 mm (l×w×h)natural tone
62399811_9010 aluminium powder coated1000×30×30 mm (l×w×h)white RAL9010
62399812_9010 aluminium powder coated1000×30×30 mm (l×w×h)white RAL9010
62399813_9010 aluminium powder coated1000×30×30 mm (l×w×h)white RAL9010
62399815_9010 aluminium powder coated1000×30×30 mm (l×w×h)white RAL9010
62399811, 62399812, 62399813, 62399815: Please consider linear extension with temperature variations
ANrDescriptionDimensionsHousing/
colour
Datasheets
62398851 CATania 30, anodised aluminium cover1000×27,4×7,9 mm (l×w×h)aluminium
62398852 CATania 30, anodised aluminium cover2010×27,4×7,9 mm (l×w×h)aluminium
62399871 CATania 30, prisma cover to reduce the dazzling effect1000×27,4×7,9 mm (l×w×h)transparent clear
62399872 CATania 30, prisma cover to reduce the dazzling effect2010×27,4×7,9 mm (l×w×h)transparent clear
62399873 CATania 30, prisma cover to reduce the dazzling effect3020×27,4×7,9 mm (l×w×h)transparent clear
62399875 CATania 30, prisma cover to reduce the dazzling effect5030×27,4×7,9 mm (l×w×h)transparent clear
62399821 CATania 30, Diffuser opal, for a homogenous and glare-free light distribution1000×27,4×7,9 mm (l×w×h)transparent opal white
62399841 CATania 30, Diffuser high, opal, 180° for an all round homogenous light emission1000×30×27,8 mm (l×w×h)transparent opal white
62399851 CATania 30, Diffuser satined, little light consumption and hiding technical view at the same time1000×27,4×7,9 mm (l×w×h)transparent satined
62399861 CATania 30, Diffuser clear, for maximum light yield and protection of the LED strip1000×27,4×7,9 mm (l×w×h)transparent clear
62399822 CATania 30, Diffuser opal, for a homogenous and glare-free light distribution2010×27,4×7,9 mm (l×w×h)transparent opal white
62399842 CATania 30, Diffuser high, opal, 180° for an all round homogenous light emission2010×30×27,8 mm (l×w×h)transparent opal white
62399852 CATania 30, Diffuser satined, little light consumption and hiding technical view at the same time2010×27,4×7,9 mm (l×w×h)transparent satined
62399862 CATania 30, Diffuser clear, for maximum light yield and protection of the LED strip2010×27,4×7,9 mm (l×w×h)transparent clear
62399823 CATania 30, Diffuser opal, for a homogenous and glare-free light distribution3020×27,4×7,9 mm (l×w×h)transparent opal white
62399843 CATania 30, Diffuser high, opal, 180° for an all round homogenous light emission3020×30×27,8 mm (l×w×h)transparent opal white
62399853 CATania 30, Diffuser satined, for a diffused light distribution and concealment of the technology3020×27,4×7,9 mm (l×w×h)transparent satined
62399863 CATania 30, Diffuser clear, for maximum light yield and protection of the LED strip3020×27,4×7,9 mm (l×w×h)transparent clear
62399825 CATania 30, Diffuser opal, for a homogenous and glare-free light distribution5030×27,4×7,9 mm (l×w×h)transparent opal white
62399845 CATania 30, Diffuser high, opal, 180° for an all round homogenous light emission5030×30×27,8 mm (l×w×h)transparent opal white
62399855 CATania 30, Diffuser satined, for a diffused light distribution and concealment of the technology5030×27,4×7,9 mm (l×w×h)transparent satined
62399865 CATania 30, Diffuser clear, for maximum light yield and protection of the LED strip5030×27,4×7,9 mm (l×w×h)transparent clear
62399821, 62399851, 62399861, 62399822, 62399852, 62399862, 62399823, 62399853, 62399863, 62399825, 62399855, 62399865: Please consider linear extension with temperature variations
ANrDescriptionMounting
type
Housing/
colour
Datasheets
62398806 Connectors, profile connector set adjustable, 304 stainless steel, 2 pieces, incl. grub screws, for an angled light lineschraubbarsilbergrau
62398841 Profile inserts, CATania insert profile, asymmetrical, for mounting the LEDlight flex family, combinable with GARliano covers, light deflection 14°steckbar
62398842 Profile inserts, CATania insert profile, asymmetrical, for mounting the LEDlight flex family, combinable with GARliano covers, light deflection 14°steckbaraluminium
62398843 Profile inserts, CATania insert profile, asymmetrical, for mounting the LEDlight flex family, combinable with GARliano covers, light deflection 14°steckbaraluminium
62398845 Profile inserts, CATania insert profile, asymmetrical, for mounting the LEDlight flex family, combinable with GARliano covers, light deflection 14°steckbaraluminium
62399908 Vandal-proof mounting, 1x vandal-proof mounting, aluminium, anodised, the alu-profile is fixed to the mounting with a hex keyschraubbaraluminium
62398801 Profile brackets, 2x angle brackets for a 90° wall installation, aluminium, anodised, incl. 1 rounded head screw for attaching the brackets to the profileschraubbaraluminium
62399906 Profile brackets, holding set, 2x brackets + 2x screws, 306 stainless steel, suitable for GARgano, GARliano, CATania profileschraubbarEdelstahl
62399816 Profile brackets, reflectortape with a light reflection of >97%, sold by the metre, suitable for CATania profileeinschiebenwhite
65400100 Profile brackets, suspension for ceiling installation (2x 150cm wire cable Ø 1mm with M4 thread, 2x mounting plates, 2x suspension brackets)Abhängeseilsilver
65400150 Profile brackets, suspension for ceiling installation (4x 150cm wire cable Ø 1mm with M4 thread, 4x mounting plates, 4x suspension brackets) for profile lenghts > 3mAbhängeseilsilver
62399817 Profile brackets, reflectortape with a light reflection of >97%, suitable for CATania profileeinschiebenwhite
62399829 Profile End Caps, 2x CATania end cap, cable duct, incl. 4 screwsschraubbarnatural tone
62399828 Profile End Caps, 2x CATania end cap with screwless visible surfaceschraubbarnatural tone
62399827 Profile End Caps, 2x CATania end cap, standard, incl. 4 screwsschraubbarnatural tone
62399919 Profile brackets, 1x profile connector, incl. locking screws, suitable for GARgano, GARliano, CATania profileschraubbarsilbergrau
62399936 Profile brackets, 1x profile 90°-connector, incl. 2 locking screws, suitable for GARgano, GARliano profileschraubbarsilbergrau
62399846 Profile End Caps, 2 x end caps frosted for plastic cover high 180° item no. 6239984#steckbartransparent opal white

Light effect

CATania 3030 with opal white diffuser and LEDlight flex 08 8 HIGH EFFICIENCY 2.0

Front view

Side view

CATania 3030 with opal white diffuser

CATania 3030 with 180° diffuser, opal white

CATania 3030 with prisma diffuser

CATania 3030 with satined diffuser

CATania 3030 with clear diffuser

CATania 3030 with black diffuser
