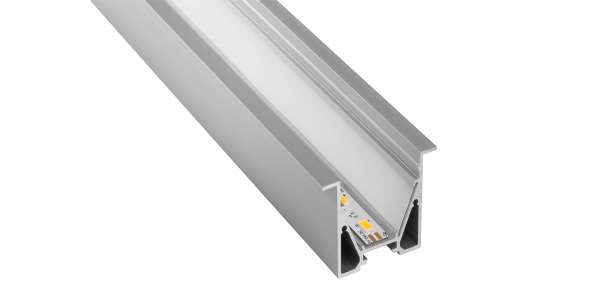

CATANIA 3030 T

high quality recess aluminium profile, anodized
for plasterboard ceilings and walls or for various floor materials
with two parallel hollow spaces which can be used as concealed cable channels
increased light output through integrated reflector
in combination with the optional reflector stripe the light output can be increased by up to 20 %
visually appealing overall appearance with compatible wing end caps
in combination with an opal white cover and compatible LEDlight flex, a homogenous light distribution can be achieved
RAL powder coating on request

Catalogue | EulumDat | DWG file

Products
Covers
Accessories

ANr*	Description	Dimensions	Housing/ colour
62399831	aluminium anodized	1000×40×30 mm (l×w×h)	natural tone
62399832	aluminium anodized	2010×40×30 mm (l×w×h)	natural tone
62399833	aluminium anodized	3020×40×30 mm (l×w×h)	natural tone
62399835	aluminium anodized	5030×40×30 mm (l×w×h)	natural tone
62399831_9010	aluminium powder coated	1000×40×30 mm (l×w×h)	white RAL9010
62399832_9010	aluminium powder coated	2010×40×30 mm (l×w×h)	white RAL9010
62399833_9010	aluminium powder coated	3020×40×30 mm (l×w×h)	white RAL9010
62399835_9010	aluminium powder coated	5030×40×30 mm (l×w×h)	white RAL9010
62399831_9005	aluminium powder coated	1000×40×30 mm (l×w×h)	black RAL9005
62399832_9005	aluminium powder coated	2010×40×30 mm (l×w×h)	black RAL9005
62399833_9005	aluminium powder coated	3020×40×30 mm (l×w×h)	black RAL9005
62399835_9005	aluminium powder coated	5030×40×30 mm (l×w×h)	black RAL9005

62399831, 62399832, 62399833, 62399835: Please consider linear extension with temperature variations

ANr	Description	Dimensions	Housing/ colour
62399871	CATania 30, prisma cover to reduce the dazzling effect	1000×27,4×7,9 mm (l×w×h)	transparent clear
62399872	CATania 30, prisma cover to reduce the dazzling effect	2010×27,4×7,9 mm (l×w×h)	transparent clear
62399873	CATania 30, prisma cover to reduce the dazzling effect	3020×27,4×7,9 mm (l×w×h)	transparent clear
62399875	CATania 30, prisma cover to reduce the dazzling effect	5030×27,4×7,9 mm (l×w×h)	transparent clear
62399821	CATania 30, Diffuser opal, for a homogenous and glare-free light distribution	1000×27,4×7,9 mm (l×w×h)	transparent opal white
62399851	CATania 30, Diffuser satined, little light consumption and hiding technical view at the same time	1000×27,4×7,9 mm (l×w×h)	transparent satined
62399861	CATania 30, Diffuser clear, for maximum light yield and protection of the LED strip	1000×27,4×7,9 mm (l×w×h)	transparent clear
62399822	CATania 30, Diffuser opal, for a homogenous and glare-free light distribution	2010×27,4×7,9 mm (l×w×h)	transparent opal white
62399852	CATania 30, Diffuser satined, little light consumption and hiding technical view at the same time	2010×27,4×7,9 mm (l×w×h)	transparent satined
62399862	CATania 30, Diffuser clear, for maximum light yield and protection of the LED strip	2010×27,4×7,9 mm (l×w×h)	transparent clear
62399823	CATania 30, Diffuser opal, for a homogenous and glare-free light distribution	3020×27,4×7,9 mm (l×w×h)	transparent opal white
62399853	CATania 30, Diffuser satined, for a diffused light distribution and concealment of the technology	3020×27,4×7,9 mm (l×w×h)	transparent satined
62399863	CATania 30, Diffuser clear, for maximum light yield and protection of the LED strip	3020×27,4×7,9 mm (l×w×h)	transparent clear
62399825	CATania 30, Diffuser opal, for a homogenous and glare-free light distribution	5030×27,4×7,9 mm (l×w×h)	transparent opal white
62399855	CATania 30, Diffuser satined, for a diffused light distribution and concealment of the technology	5030×27,4×7,9 mm (l×w×h)	transparent satined
62399865	CATania 30, Diffuser clear, for maximum light yield and protection of the LED strip	5030×27,4×7,9 mm (l×w×h)	transparent clear

62399821, 62399851, 62399861, 62399822, 62399852, 62399862, 62399823, 62399853, 62399863, 62399825, 62399855, 62399865: Please consider linear extension with temperature variations

ANr	Description	Mounting type	Housing/ colour
62398841	Profile inserts, CATania insert profile, asymmetrical, for mounting the LEDlight flex family, combinable with GARliano covers, light deflection 14°	steckbar	aluminium
62398842	Profile inserts, CATania insert profile, asymmetrical, for mounting the LEDlight flex family, combinable with GARliano covers, light deflection 14°	steckbar	aluminium
62398843	Profile inserts, CATania insert profile, asymmetrical, for mounting the LEDlight flex family, combinable with GARliano covers, light deflection 14°	steckbar	aluminium
62398845	Profile inserts, CATania insert profile, asymmetrical, for mounting the LEDlight flex family, combinable with GARliano covers, light deflection 14°	steckbar	aluminium
62399837_9005	Profile End Caps, aluminium powder coated	schraubbar	black RAL9005
62399837_9010	Profile End Caps, aluminium powder coated	schraubbar	white RAL9010
62399906	Profile brackets, holding set, 2x brackets + 2x screws, 306 stainless steel, suitable for GARgano, GARliano, CATania profile	schraubbar	Edelstahl
62399816	Profile brackets, reflectortape with a light reflection of >97%, sold by the metre, suitable for CATania profile	einschieben	white
62399817	Profile brackets, reflectortape with a light reflection of >97%, suitable for CATania profile	einschieben	white
62399838	Profile brackets, 1x retaining spring, suitable for CATania profile	Haltefeder	silver
62399837	Profile End Caps, 2x CATania end cap T, incl. 4 screws	schraubbar	natural tone
62399919	Profile brackets, 1x profile connector, incl. locking screws, suitable for GARgano, GARliano, CATania profile	schraubbar
62399936	Profile brackets, 1x profile 90°-connector, incl. 2 locking screws, suitable for GARgano, GARliano profile	schraubbar	silbergrau
62399846	Profile End Caps, 2 x end caps frosted for plastic cover high 180° item no. 6239984#	steckbar	transparent opal white
