CATANIA 6075

  • high quality luminaire aluminium profile, anodised

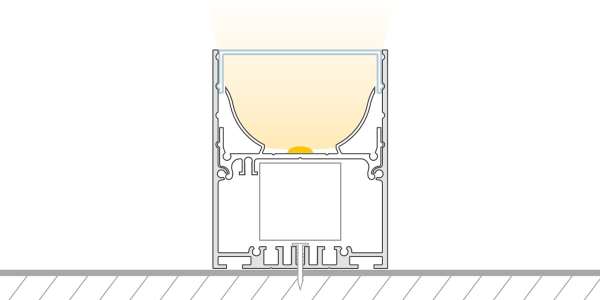

  • flexibly useable as surface-mounted or luminaire profile
  • integrateable power supply 66000315
  • the cover can be installed in 3 levels (shielded, flush or 180°)
  • increased light output through white powder coated reflector integrated in the profile insert
  • in combination with an opal white cover and compatible LEDlight flex, a homogenous light distribution can be achieved
  • RAL powder coating on request


  • aluminium anodized
  • Housing/colour: aluminium



Download Catalogue | DWG file
ANr*DimensionsDatasheets
62398861 1000×60×75 mm (l×w×h)
62398862 2010×60×75 mm (l×w×h)
62398863 3020×60×75 mm (l×w×h)
62398865 5030×60×75 mm (l×w×h)
Please consider linear extension with temperature variations
ANrDescriptionDimensionsHousing/
colour		Datasheets
62398911 CATania 60, Diffuser clear, for maximum light yield and protection of the LED strip1000×55,8×15 mm (l×w×h)transparent clear
62398912 CATania 60, Diffuser clear, for maximum light yield and protection of the LED strip2010×55,8×15 mm (l×w×h)transparent clear
62398913 CATania 60, Diffuser clear, for maximum light yield and protection of the LED strip3020×55,8×15 mm (l×w×h)transparent clear
62398915 CATania 60, Diffuser clear, for maximum light yield and protection of the LED strip5030×55,8×15 mm (l×w×h)transparent clear
62398921 CATania 60, Diffuser satined, for a diffused light distribution and concealment of the technology1000×55,8×15 mm (l×w×h)transparent satined
62398922 CATania 60, Diffuser satined, for a diffused light distribution and concealment of the technology2010×55,8×15 mm (l×w×h)transparent satined
62398923 CATania 60, Diffuser satined, for a diffused light distribution and concealment of the technology3020×55,8×15 mm (l×w×h)transparent satined
62398925 CATania 60, Diffuser satined, for a diffused light distribution and concealment of the technology5030×55,8×15 mm (l×w×h)transparent satined
62398931 CATania 60, Diffuser opal, for a homogenous and glare-free light distribution1000×55,8×15 mm (l×w×h)transparent opal white
62398932 CATania 60, Diffuser opal, for a homogenous and glare-free light distribution2010×55,8×15 mm (l×w×h)transparent opal white
62398933 CATania 60, Diffuser opal, for a homogenous and glare-free light distribution3020×55,8×15 mm (l×w×h)transparent opal white
62398935 CATania 60, Diffuser opal, for a homogenous and glare-free light distribution5030×55,8×15 mm (l×w×h)transparent opal white
Please consider linear extension with temperature variations
ANrDescriptionMounting
type		Housing/
colour		Datasheets
62398806 Connectors, profile connector set adjustable, 304 stainless steel, 2 pieces, incl. grub screws, for an angled light lineschraubbarsilbergrau
62398878 Micro louvre, micro louvre for glare-free lighting of LED luminaires, louvre length: 50 cm, can be arranged next to each other silver
62399788 Profile brackets, Voltage-carrying wire suspensionAbhängeseilchrom
62398871 Profile inserts, CATania 60 insert profile, aluminium, anodised, for installation of LED strips of the LEDlight flex series or PCBs according to Zhaga class L28W2 and L56W2; white powder coated reflective surface for increased luminous efficiencysteckbaraluminium

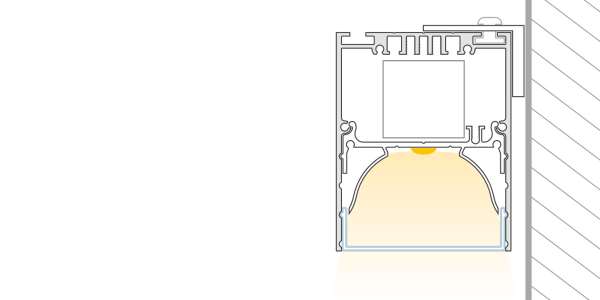

62398801 Profile brackets, 2x angle brackets for a 90° wall installation, aluminium, anodised, incl. 1 rounded head screw for attaching the brackets to the profileschraubbaraluminium
62398802 Connectors, 2x straight connectors, metal, incl. 8 grub screwsschraubbarsilbergrau
62398872 Profile inserts, CATania 60 insert profile, aluminium, anodised, for installation of LED strips of the LEDlight flex series or PCBs according to Zhaga class L28W2 and L56W2; white powder coated reflective surface for increased luminous efficiencysteckbaraluminium
62398803 Connectors, 2x connectors, 90° angle, metal, incl. 8 grub screwsschraubbarsilbergrau
62398873 Profile inserts, CATania 60 insert profile, aluminium, anodised, for installation of LED strips of the LEDlight flex series or PCBs according to Zhaga class L28W2 and L56W2; white powder coated reflective surface for increased luminous efficiencysteckbaraluminium
62398875 Profile inserts, CATania 60 insert profile, aluminium, anodised, for installation of LED strips of the LEDlight flex series or PCBs according to Zhaga class L28W2 and L56W2; white powder coated reflective surface for increased luminous efficiencysteckbaraluminium
62398876 Profile brackets, suspension for ceiling mount, metal, nickel-plated, (2x 150 cm wire cable, Ø 1 mm, 2x suspension brackets, 2x Y-profile holderAbhängeseilsilver
62398866 Profile End Caps, aluminium anodizedschraubbaraluminium
62398916 Profile End Caps, 2x end cap, opal for cover in 180° position, thickness (excl. holding pins): 2mmsteckbartransparent opal white
62398868 Profile End Caps, 2x end caps with screwless visible surface, aluminium, anodised, thickness (excl. fixing clips): 2 mmschraubbaraluminium
