Ground recessed luminaire with lateral light outlet

With the Pisa Accent, Barthelme LED Solutions expands its portfolio of ground recessed luminaires in its „Made in Germany“ series. The product family Pisa is now available in three different designs and offers plenty of freedom for the planning of lighting concepts in outdoor areas.

The new Pisa Accent, with a protection class rating of IP 67, has a load carrying capacity of three tons and is ideally suitable as marker lighting for parking areas, sidewalks or for impressive light accents in parks and gardens. The user can choose between a shield with a single light outlet and a shield with two light outlets on opposite sides. Both variants have a beam angle of 120°. Depending on the application area and personal preferences, one can select a suitable surface finishing of the 316L stainless steel shield: high gloss finish or brushed.

Integrated in the housing is a Nichia Power-LED with 2.6 W which provides a luminous flux of 7.3 up to 8.4 lumen per light outlet. This ensures that motorists, pedestrians and other road users, close to the luminaires, are not dazzled by the light. Pisa Accent is available in the colour temperatures 2.700 K, 3.000 K, 4.000 K and RGBW. Optionally available is an aluminum ground mounting sleeve for a secure installation on a variety of ground surfaces. The ground recessed luminaire has an installation diameter of 40 mm whilst the shield has a diameter of 60 mm. An integrated waterproof but gas-permeable membrane enables ventilation of the housing and protects the luminaire reliably and durably against moisture.

Click here for more information >>

Barthelme-Ground-recessed-luminaire

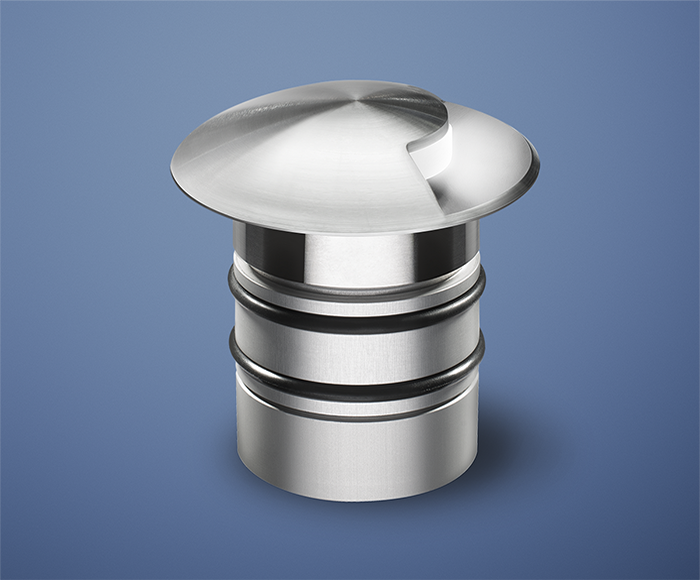

IMAGE: the new ground recessed luminaire Pisa Accent has lateral light outlets and is ideal for the accentuation of parking places, sidewalks, parks and gardens.
