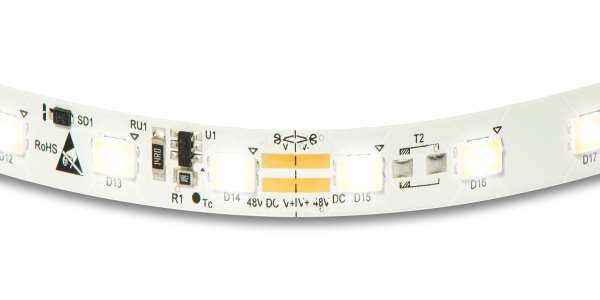

LEDLIGHT FLEX 14 8P HIGH PERFORMANCE 48V

only 8 mm wide for use with designated plug connectors with integrated strain relief to connect strips without tools or soldering
48 V technology for longer power infeed > 10 m
ideally suited for efficient, indirect illumination (e.g. as cove lighting)
very efficient thermal management due to larger, flat LED chip (5630) and integrated heat dissipation
long LED lifetime due to current limiter with integrated temperature control, high amount of copper in FPC and 3M thermoconducting adhesive tape
ESD proof to 5 kV based on JESD22-A114-F
reverse polarity protection
binning in 2 step MacAdam per reel
estimated lifetime L70 at Tc< 80°C: >54,000h

Catalogue | Manuals

ANr*	Colour	Description	Colour temperature	Lumen	Power	Lumen/ watt	Lumen/ meter	CRI	Dimensions	Number LED	Watt/ meter
50004828	warm white \| 827	Cut	2700 K	378 lm	3,6 W	105 lm/W	1890 lm/m	85	200×8×1,4 mm (l×w×h)	14	18 W/m
50404828	warm white \| 827	Reel	2700 K	11340 lm	108 W	105 lm/W	1890 lm/m	85	6000×8×2,5 mm (l×w×h)	420	18 W/m
50004833	white \| 830	Cut	3000 K	378 lm	3,6 W	105 lm/W	1890 lm/m	85	200×8×1,4 mm (l×w×h)	14	18 W/m
50404833	white \| 830	Reel	3000 K	11340 lm	108 W	105 lm/W	1890 lm/m	85	6000×8×2,5 mm (l×w×h)	420	18 W/m
50004827	white \| 835	Cut	3500 K	378 lm	3,6 W	105 lm/W	1890 lm/m	85	200×8×1,4 mm (l×w×h)	14	18 W/m
50404827	white \| 835	Reel	3500 K	11340 lm	108 W	105 lm/W	1890 lm/m	85	6000×8×2,5 mm (l×w×h)	420	18 W/m
50004834	cold white \| 840	Cut	4000 K	378 lm	3,6 W	105 lm/W	1890 lm/m	85	200×8×1,4 mm (l×w×h)	14	18 W/m
50404835	cold white \| 840	Reel	4000 K	11340 lm	108 W	105 lm/W	1890 lm/m	85	6000×8×2,5 mm (l×w×h)	420	18 W/m
50004815	daylight \| 850	Cut	5000 K	378 lm	3,6 W	105 lm/W	1890 lm/m	85	200×8×1,4 mm (l×w×h)	14	18 W/m
50404815	daylight \| 850	Reel	5000 K	11340 lm	108 W	105 lm/W	1890 lm/m	85	6000×8×2,5 mm (l×w×h)	420	18 W/m

Please note: Insufficient cooling will damage the LEDs

Processing notes for LEDlight flex

ANr	Description	Input voltage	Application	Degree of protection	Housing/ colour
51991012	LED cable and confectioning, cable with AR connector 100 cm 2 pole - soldered to LEDlight flex				white
50070203	LED plug-in system, LED strip to strip connector, 8 mm, for tool-free connection of 2 and 4-pole strips, 1 piece	3-48 VDC	Indoor	IP20
50070204	LED plug-in system, LED strip to strip connector, 8 mm, 40 mm cable, for tool-free connection of 2 and 4-pole strips, 1 piece	3-48 VDC	Indoor	IP20
50070201	LED plug-in system, LED strip to power connector, 8 mm, 2-pole, 50 cm cable with free wire ends, for tool-free connection of the strip, 1 piece	3-48 VDC	Indoor	IP20
50990721	LED cable and confectioning, cable 2 pole, with tin plated free wire ends - soldered to LEDlight flex
50990722	LED cable and confectioning, cable 2 pole, with tin plated free wire ends - soldered to LEDlight flex
50990723	LED cable and confectioning, cable 2 pole, with tin plated free wire ends - soldered to LEDlight flex

50070203, 50070204, 50070201: Detailled processing notes see datasheet
