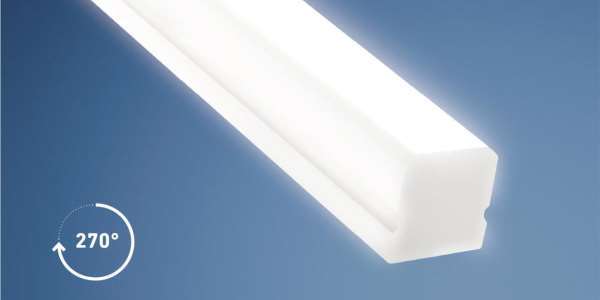

AQUALUC S:OLID
270° MONOCHROME HIGH BRIGHTNESS 48 V

  • with 48 V technology for extra long feed-in lengths up to 14,400 mm; several sections can be connected and operated with only one power supply unit
  • rigid LED light line with protection class IP 68
  • light emission on three sides, providing a 270° beam angle
  • e.g. for processing chambers/machines in industry in harsh environments or as facade lighting with several light emission sides in weatherproof construction
  • for installation under water to a depth of 1.2 m
  • protection against mechanical, physical and chemical influences
  • resistant to water and UV radiation
  • only one bin per light color according to 3-Step-MacAdam
  • constant current and high copper content in the FPC ensure long lifetime
  • rear side feed for aligning several modules in a row
  • accessories of S:OLID can be used
  • estimated lifetime L90/B10 at Ta < 35 °C: > 60,000 h






** The EEC specification refers in each case to the installed light source(s)

* order numbers

We manufacture the LED light lines of the AQUALUC series individually according to your requirements. In the following table you have the possibility to complete the order number of your desired luminaire.

Example for a complete order number: AQUA-5001-0028-2000-21-001-002

AQUA-XXXX-XXXX -XXXX -XX -XXX -XXX
see Table (Wish length in mm) Cable feed Cable in-feed Cable out-feed
21 - one-sided
22 - double-sided
001 - 1m-cable
002 - 2m-cable
003 - 3m-cable
004 - 4m-cable
005 - 5m-cable
006 - 6m-cable
101 - 0.35m cable with M8 connector
000 - no cable out-feed
001 - 1m-cable
002 - 2m-cable
003 - 3m-cable
004 - 4m-cable
005 - 5m-cable
006 - 6m-cable
102 - 0.35m cable with M8 socket
ANrDescriptionDatasheets
40100140 Accessories AQUALUC S:OLID, AQUALUC S:OLID bracket set, 316L stainless steel, 10x brackets, 10 screws, 10 dowels
40100141 Accessories AQUALUC S:OLID, AQUALUC S:OLID support profile, PC plastic, UV resistant
40100142 Accessories AQUALUC S:OLID, AQUALUC S:OLID support profile, PC plastic, UV resistant
