OLBIA
FLEXIBLE

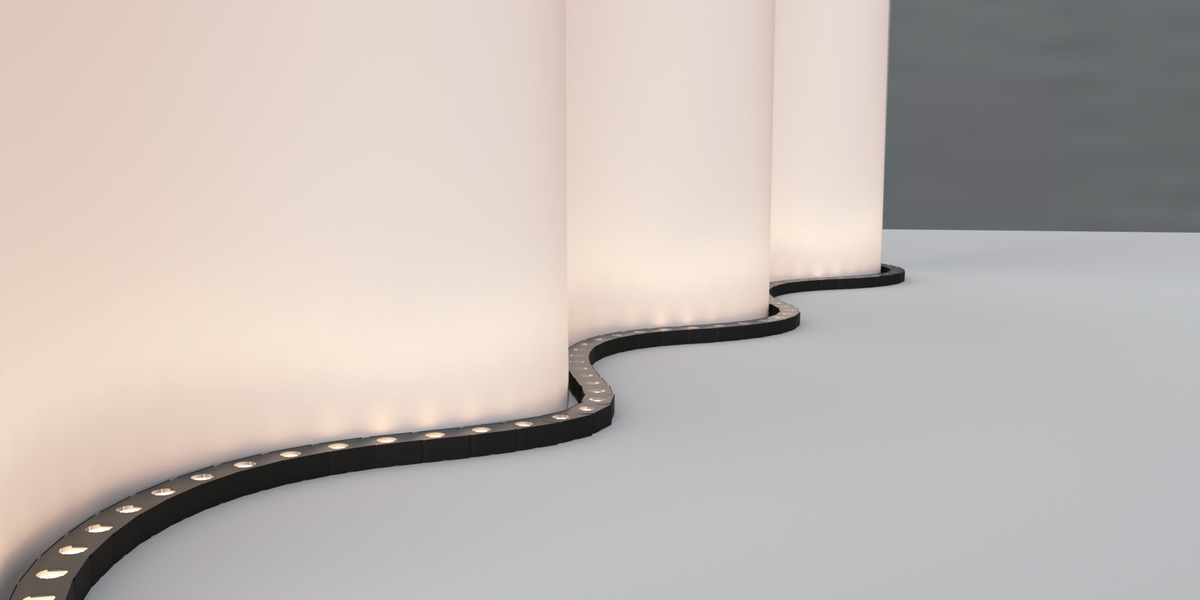

versatile application: suitably designed for curved architectural applications in indoor and outdoor settings
ideal for flood lighting, wall grazing, wall washing, and accent lighting
available in two lengths and modularly expandable: luminaire lengths can be freely combined and extended up to 4 meters
customizable lighting concepts: multiple lens options for precise light distribution and a wide selection of light colors
robust aluminum housing
for demanding environments: IP67 protection rating for wet areas; IK06 impact resistance
RGBW version is continuously dimmable

Input voltage: 24 VDC
Housing/colour: black

Catalogue | Manuals

Products
Accessories

ANr*	Colour	Colour temperature	Lumen	Power	Lumen/ watt	CRI	EEC**	Dimensions	Colour consistency	Beam angle	Number LED	Dimmable
609001022	super warm white	2200 K	970 lm	24 W	40 lm/W	80	F	666×39×29 mm (l×w×h)	3	10°x15°	12	no
609001027	warm white	2700 K	1965 lm	24 W	82 lm/W	80	F	666×39×29 mm (l×w×h)	3	10°x15°	12	no
609001030	white	3000 K	2100 lm	36 W	88 lm/W	80	F	666×39×29 mm (l×w×h)	3	10°x15°	12	no
609001036	RGBW (3000 K)	RGBW (3000 K)	1000 lm	24 W	41.7 lm/W		F	666×39×29 mm (l×w×h)		10°x15°	12	yes
609001040	cold white	4000 K	2200 lm	24 W	92 lm/W	80	F	666×39×29 mm (l×w×h)	3	10°x15°	12	no
609001522	super warm white	2200 K	670 lm	24 W	28 lm/W	90	F	666×39×29 mm (l×w×h)	3	15°x40°	12	no
609001527	warm white	2700 K	1330 lm	24 W	55 lm/W	80	F	666×39×29 mm (l×w×h)	3	15°x40°	12	no
609001530	white	3000 K	1465 lm	36 W	61 lm/W	80	F	666×39×29 mm (l×w×h)	3	15°x40°	12	no
609001536	RGBW (3000 K)	RGBW (3000 K)	700 lm	24 W	29.2 lm/W		F	666×39×29 mm (l×w×h)		15°x40°	12	yes
609001540	cold white	4000 K	1600 lm	24 W	67 lm/W	80	F	666×39×29 mm (l×w×h)	3	15°x40°	12	no
609003022	super warm white	2200 K	930 lm	24 W	39 lm/W	90	F	666×39×29 mm (l×w×h)	3	30°	12	no
609003027	warm white	2700 K	1900 lm	24 W	79 lm/W	80	F	666×39×29 mm (l×w×h)	3	30°	12	no
609003030	white	3000 K	1965 lm	36 W	82 lm/W	80	F	666×39×29 mm (l×w×h)	3	30°	12	no
609004036	RGBW (3000 K)	RGBW (3000 K)	933 lm	24 W	38.9 lm/W		F	666×39×29 mm (l×w×h)		30°	12	yes
609004040	cold white	4000 K	2100 lm	24 W	88 lm/W	80	F	666×39×29 mm (l×w×h)	3	30°	12	no
609011022	super warm white	2200 K	1450 lm	36 W	40 lm/W	80	F	1000×39×29 mm (l×w×h)	3	10°x15°	18	no
609011027	warm white	2700 K	2950 lm	36 W	82 lm/W	80	F	1000×39×29 mm (l×w×h)	3	10°x15°	18	no
609011030	white	3000 K	3150 lm	36 W	88 lm/W	80	F	1000×39×29 mm (l×w×h)	3	10°x15°	18	no
609011036	RGBW (3000 K)	RGBW (3000 K)	1500 lm	36 W	41.7 lm/W		F	1000×39×29 mm (l×w×h)		10°x15°	18	yes
609011040	cold white	4000 K	3300 lm	36 W	92 lm/W	80	F	1000×39×29 mm (l×w×h)	3	10°x15°	18	no
609011522	super warm white	2200 K	1000 lm	36 W	28 lm/W	90	F	1000×39×29 mm (l×w×h)	3	15°x40°	18	no
609011527	warm white	2700 K	2000 lm	36 W	56 lm/W	80	F	1000×39×29 mm (l×w×h)	3	15°x40°	18	no
609011530	white	3000 K	2200 lm	36 W	61 lm/W	80	F	1000×39×29 mm (l×w×h)	3	15°x40°	18	no
609011536	RGBW (3000 K)	RGBW (3000 K)	1050 lm	36 W	29.2 lm/W		F	1000×39×29 mm (l×w×h)		15°x40°	18	yes
609011540	cold white	4000 K	2400 lm	36 W	67 lm/W	80	F	1000×39×29 mm (l×w×h)	3	15°x40°	18	no
609013022	super warm white	2200 K	1400 lm	36 W	39 lm/W	90	F	1000×39×29 mm (l×w×h)	3	30°	18	no
609013027	warm white	2700 K	2850 lm	36 W	79 lm/W	80	F	1000×39×29 mm (l×w×h)	3	30°	18	no
609013030	white	3000 K	2950 lm	36 W	82 lm/W	80	F	1000×39×29 mm (l×w×h)	3	30°	18	no
609014036	RGBW (3000 K)	RGBW (3000 K)	1400 lm	36 W	38.9 lm/W		F	1000×39×29 mm (l×w×h)		30°	18	yes
609014040	cold white	4000 K	3150 lm	36 W	88 lm/W	80	F	1000×39×29 mm (l×w×h)	3	30°	18	no

Stock item Nuremberg (delivery status subject to change)

Order-specific production/procurement

not (no longer) availableg (delivery status subject to change)

** The EEC specification refers in each case to the installed light source(s)

ANr	Degree of protection	Housing/ colour
609001001		natural tone
609001002		natural tone
609001003		black
609001010	IP67
609001011	IP67
609001012	IP67
609001013	IP67
609001014	IP67
609001015	IP67
