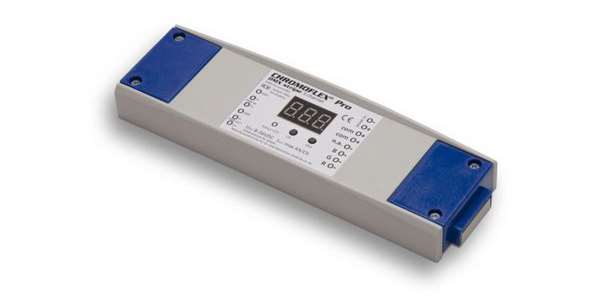

CHROMOFLEX PRO DMX CV

  • multi-room light management with DMX512 signal
  • 3 to 4 controllable channels from monochrome to RGBW/RGBA applications
  • address configurable via push-button
  • input voltage: 10-24 V DC
  • com+ common anode
  • DMX connection: screw terminals


  • Dimensions: 180×52×22mm (l×w×h)
  • Input voltage: 10-24VDC
  • Colour control: DMX
  • Housing/colour: grau/blau


System Connection type Application Degree of protection

ANr*DescriptionPowerChannelsDatasheets
66000483 3 channel for RGB applications, DMX control360W3
66000484 4 channel for RGBW/RGBA applications, DMX control384W4
ANrDescriptionDatasheets
66000426 CHROMOFLEX Pro Glass Touch DMX, Glass touch DMX, black, for controlling for one or more DMX dimmer, input 24V DC, output DMX 512, easy installation, special feature: 4-channel controller for RGBW/RGBA stripes resp. dimmer
66000427 CHROMOFLEX Pro Glass Touch DMX, Glass touch DMX,white, for controlling for one or more DMX dimmer, input 24V DC, output DMX 512, easy installation, special feature: 4-channel controller for RGBW/RGBA stripes resp. dimmer

PDF-Download: CE-Erklärung »
