ACCESSORIES AQUALUC C:URVE

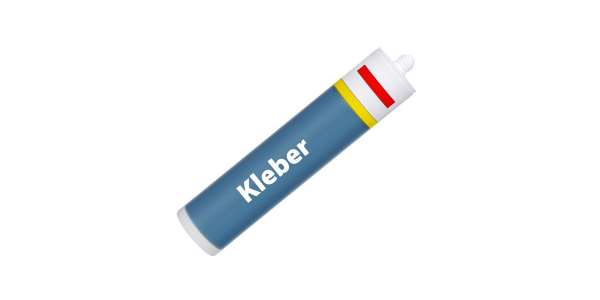

  • You have four possibilities to secure the AQUALUC. Either with support profiles for linear lines or using retaining brackets, double-sided adhesive tape or construction glue for flexible installations.
  • With the encompassing mounting profiles 40500037 and 40500038 AQUALUC light lines can also be installed over joints. When using these mounting profiles the light lines are held and not gripped, i.e. they are "floating". This enables the light lines to expand and contract again in the installed position when there are differences in temperature, which has a positive effect on the lifetime of the product.





ANrDescriptionDimensionsDatasheets
40500033 AQUALUC C:URVE (10 x 18,5 mm) aluminium mounting profile 2.0, anodised1000×15,3×16,3mm (l×w×h)
40500034 AQUALUC C:URVE (10 x 18,5 mm) aluminium mounting profile 2.0, anodised2000×15,3×16,3mm (l×w×h)
40500035 AQUALUC C:URVE (10 x 18,5 mm) aluminium bracket set, 10 pieces 5 cm, 10 screws, 10 dowels50×15,3×16,3mm (l×w×h)
40500036 AQUALUC C:URVE (10 x 18,5 mm) bracket set, 10 pieces stainless steel 316L, 10 screws, 10 dowels20×11,5×16,5mm (l×w×h)
40500037 AQUALUC C:URVE (10 x 18,5 mm); not gripping mounting profile, aluminium, anodized2000×14,6×25mm (l×w×h)
40500038 AQUALUC C:URVE (10 x 18,5 mm); not gripping mounting profile, aluminium, anodized3000×14,6×25mm (l×w×h)
40500071 AQUALUC C:URVE (10 x 18.5 mm) mounting profile 2.0, PC plastic, UV resistant1000×15,3×16,3mm (l×w×h)
40500072 AQUALUC C:URVE (10 x 18.5 mm) mounting profile 2.0, PC plastic, UV resistant2000×15,3×16,3mm (l×w×h)
66312403 M8 connection cable 35 cm with cross section 1x 0.5mm² + 3 x 0.34mm² cable and free wire ends350×Ø0,5mm (l×d)
66312203 M8 connection cable stainless steel (V4A), 35cm with cross section 2x 0.5mm² and free wire ends.350×Ø0,5mm (l×d)
66312230 M8 connection cable stainless steel (V4A), 300cm with cross section 2x 0.5mm² , free wire ends.3000×Ø0,5mm (l×d)
66312430 M8 connection cable 300 cm with cross section 1x 0.5mm² + 3 x 0.34mm² cable and free wire ends3000×Ø0,5mm (l×d)
40500033, 40500034, 40500035, 40500036: Please consider linear extension with temperature variations.
