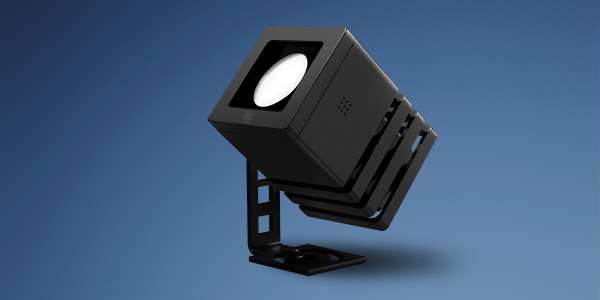

VERONA 1.2S 12/24V
OUTDOOR SPOT

  • dimmable, high quality LED spot for outdoor applications
  • milled aluminium housing, anodised black
  • various configurations for diverse project requirements
  • available as CV version in the white tones 2,700 K, 3,000 K, and 4,000 K plus four optional beam angles
  • with integrated membrane for prevention of condensation and contamination through pressure compensation
  • fitted with high quality power LEDs from Nichia
  • optional with honeycomb mesh for lateral glare suppression
  • incl. adjustable holding bracket
  • incl. 5 m connection cable with free wire ends
  • CV version optional fitting with M8 or VIA-M12 connector
  • estimated lifetime L70 at Ta < 45 °C: > 51,400 h


  • NumberLED: 1
  • Input-Voltage: 12VDC/24VDC
  • Housing/colour: black anodised


System Colour-Type Connectiontype Application Lifespan L70 Colourconsistency Degreeof protection

ANr*ColourColour-
Temperature
LumenPowerLumen/
Watt
CRIEEKDimensionsBeam
angle
DimmableColour
control
Max.
Housing-Temperature
Datasheets
Test_Leuchte weiß | 8303000K330lm4,3W77lm/W83A+46,5×46,5×82mm (l×w×h)34°neinCASAMBI90°
69162811 warm white | 8272700K310lm4,3W72lm/W83A+66×52×82mm (l×w×h)12°ja 65°
69162820 warm white | 8272700K310lm4,3W72lm/W83A+66×52×82mm (l×w×h)21°ja 65°
69162832 warm white | 8272700K310lm4,3W72lm/W83A+66×52×82mm (l×w×h)34°ja 65°
69162847 warm white | 8272700K310lm4,3W72lm/W83A+66×52×82mm (l×w×h)44°x9°ja 65°
69163311 weiß | 8303000K330lm4,3W77lm/W83A+66×52×82mm (l×w×h)12°ja 65°
69163320 weiß | 8303000K330lm4,3W77lm/W83A+66×52×82mm (l×w×h)21°ja 65°
69163332 weiß | 8303000K330lm4,3W77lm/W83A+66×52×82mm (l×w×h)34°ja 65°
69163347 weiß | 8303000K330lm4,3W77lm/W83A+66×52×82mm (l×w×h)44°x9°ja 65°
69162611 cold white | 8404000K350lm4,3W81lm/W83A+66×52×82mm (l×w×h)12°ja 65°
69162620 cold white | 8404000K350lm4,3W81lm/W83A+66×52×82mm (l×w×h)21°ja 65°
69162632 cold white | 8404000K350lm4,3W81lm/W83A+66×52×82mm (l×w×h)34°ja 65°
69162647 cold white | 8404000K350lm4,3W81lm/W83A+66×52×82mm (l×w×h)44°x9°ja 65°
ANrDescription
62700050 Ground Spike for Verona, ground spike, stainless steel 304, incl. screws for attaching the luminaire to the ground spike
62700077 Honeycomb Mesh, honeycomb mesh for lateral glare suppression, aluminium, anodised, black, fitted prior to delivery
