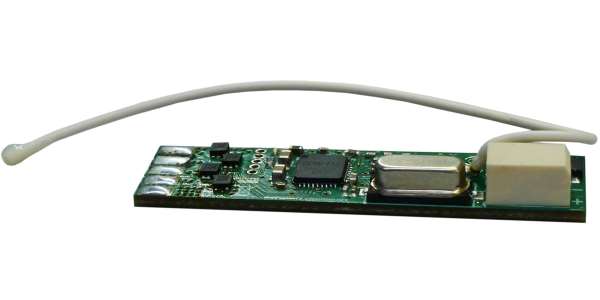

CHROMOFLEX PRO LUMINARY CV

  • mini LED controller for integration in profiles and on printed circuit boards
  • wireless controlling, networking and programming
  • easy to operate via remote control and software
  • input voltage: 8-26 V DC
  • 11 programmes, 3 of them configurable with USB dongle and software, e.g. as dynamic colour progression over a time period of up to 24 hours
  • is ideally suited for integration into flat profiles and on printed circuit boards for luminaries due to its compact size and low build-height (only modest shadowing)


  • Dimensions: 50×12,5×7mm (l×w×h)
  • Input-Voltage: 8-26VDC
  • Colourcontrol: Funk


System Application Degreeof protection

ANr*DescriptionPowerChannelsDatasheets
66000345 1 channel RC dimmer72W1
66000346 2 channel controlled white controlling72W2
66000347 3 channel controller for RGB applications72W3
66000348 4 channel controller for RGBW/RGBA applications96W4
Suitable for most of our profiles or the LED board - please be aware of the height inside the profile!
ANrDescriptionInput-
Voltage
SystemApplicationColour
control
ChannelsMax.
Housing-Temperature
Datasheets
66000025 CHROMOFLEX Pro Remote controls, radio control slim for 3/4 channel control, new assignment of keys   Funk
66000027 CHROMOFLEX Pro Remote controls, radio control slim for 2 channel control, new assignment of keys   Funk
66000028 CHROMOFLEX Pro Remote controls, radio control slim for 1 channel control, new assignment of keys   Funk
66000036 CHROMOFLEX Pro Software, USB dongle, required to program the CHROMOFLEX Pro Serie. Die CHROMOFLEX Software erhalten Sie kostenlos unter www.barthelme.de/software5VDCCV Funk
66000371 CHROMOFLEX Pro Push-button, push-button mono, dimmer module, 1-channel3VDCCVIndoor 160°
66000372 CHROMOFLEX Pro Push-button, push-button controlled-white, 2-channel3VDCCVIndoor 260°
66000373 CHROMOFLEX Pro Push-button, push-button RGB/RGBW, 3-/4-channel3VDCCVIndoor 460°
