PROFILE INSERTS






Download
ANr*DescriptionMounting
type
DimensionsHousing/
colour
Datasheets
62398781 CATania 30 insertion profile, aluminium, black anodised, for LED boards with a max. width of 23.5 mmsteckbar1000×27,4×7,9 mm (l×w×h)black
62398782  steckbar2010×27,4×7,9 mm (l×w×h)black
62398783  steckbar3020×27,4×7,9 mm (l×w×h)black
62398785  steckbar5030×27,4×7,9 mm (l×w×h)black
62398821 CATania 30 insert profile for mounting of LED PCBs with a maximum width of 23.5 mmsteckbar1000×27,4×7,9 mm (l×w×h)aluminium
62398822 CATania 30 insert profile for mounting of LEDlight flex series, combinable with GARgano coverssteckbar2010×27,4×7,9 mm (l×w×h)aluminium
62398823 CATania 30 insert profile for mounting of LEDlight flex series, combinable with GARgano coverssteckbar3020×27,4×7,9 mm (l×w×h)aluminium
62398825 CATania 30 insert profile for mounting of LEDlight flex series, combinable with GARgano coverssteckbar5030×27,4×7,9 mm (l×w×h)aluminium
62398831 CATania 30 insert profile for mounting of LEDlight flex series, combinable with GARgano covers 1000×27,4×9,3 mm (l×w×h)
62398832 CATania 30 insert profile for mounting of LEDlight flex series, combinable with GARgano covers 2010×27,4×9,3 mm (l×w×h)
62398833 CATania 30 insert profile for mounting of LEDlight flex series, combinable with GARgano covers 3020×27,4×9,3 mm (l×w×h)
62398835 CATania 30 insert profile for mounting of LEDlight flex series, combinable with GARgano covers 5030×27,4×9,3 mm (l×w×h)
62398841 CATania insert profile, asymmetrical, for mounting the LEDlight flex family, combinable with GARliano covers, light deflection 14°steckbar1000×27,4×17,91 mm (l×w×h)aluminium
62398842 CATania insert profile, asymmetrical, for mounting the LEDlight flex family, combinable with GARliano covers, light deflection 14°steckbar2010×27,4×17,91 mm (l×w×h)aluminium
62398843 CATania insert profile, asymmetrical, for mounting the LEDlight flex family, combinable with GARliano covers, light deflection 14°steckbar3020×27,4×17,91 mm (l×w×h)aluminium
62398845 CATania insert profile, asymmetrical, for mounting the LEDlight flex family, combinable with GARliano covers, light deflection 14°steckbar5030×27,4×17,91 mm (l×w×h)aluminium
62398881 CATania insert profile, symmetrical, for mounting the LEDlight flex family, combinable with GARliano covers 1000×27,4×17,5 mm (l×w×h)
62398883 CATania insert profile, symmetrical, for mounting the LEDlight flex family, combinable with GARliano covers 3020×27,4×17,5 mm (l×w×h)
62398885 CATania insert profile, symmetrical, for mounting the LEDlight flex family, combinable with GARliano covers 5030×27,4×17,5 mm (l×w×h)

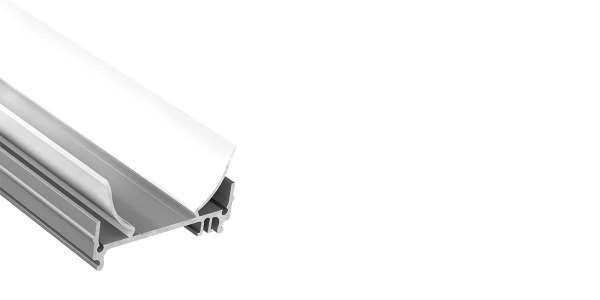

62398871 CATania 60 insert profile, aluminium, anodised, for installation of LED strips of the LEDlight flex series or PCBs according to Zhaga class L28W2 and L56W2; white powder coated reflective surface for increased luminous efficiencysteckbar1000×57,2×31,6 mm (l×w×h)aluminium
62399781 CATania 80 insert profile, aluminium, anodised, for installation of LED strips or PCBs according to Zhaga class L28W2 and L56W2; white powder coated reflective surface for increased luminous efficiencysteckbar1000×74×35,5 mm (l×w×h)aluminium + white
62398872 CATania 60 insert profile, aluminium, anodised, for installation of LED strips of the LEDlight flex series or PCBs according to Zhaga class L28W2 and L56W2; white powder coated reflective surface for increased luminous efficiencysteckbar2010×57,2×31,6 mm (l×w×h)aluminium
62399782 CATania 80 insert profile, aluminium, anodised, for installation of LED strips or PCBs according to Zhaga class L28W2 and L56W2; white powder coated reflective surface for increased luminous efficiencysteckbar2010×74×35,5 mm (l×w×h)aluminium + white
62398873 CATania 60 insert profile, aluminium, anodised, for installation of LED strips of the LEDlight flex series or PCBs according to Zhaga class L28W2 and L56W2; white powder coated reflective surface for increased luminous efficiencysteckbar3020×57,2×31,6 mm (l×w×h)aluminium
62399783 CATania 80 insert profile, aluminium, anodised, for installation of LED strips or PCBs according to Zhaga class L28W2 and L56W2; white powder coated reflective surface for increased luminous efficiencysteckbar3020×74×35,5 mm (l×w×h)aluminium + white
62398875 CATania 60 insert profile, aluminium, anodised, for installation of LED strips of the LEDlight flex series or PCBs according to Zhaga class L28W2 and L56W2; white powder coated reflective surface for increased luminous efficiencysteckbar5030×57,2×31,6 mm (l×w×h)aluminium
62399785 CATania 80 insert profile, aluminium, anodised, for installation of LED strips or PCBs according to Zhaga class L28W2 and L56W2; white powder coated reflective surface for increased luminous efficiencysteckbar5030×74×35,5 mm (l×w×h)aluminium + white
