PROFILE BRACKETS

  • for a nice rounded view and easy mounting





Download
ANr*DescriptionDimensionsHousing/
colour
Datasheets
62398897 2x holding brackets, incl. 2 screws160×64×67mm (l×w×h)
62399247 2 mounting clips incl. 2 screws, stainless steel 30412×11,6×6,4mm (l×w×h)
62399916 2x brackets for concrete walls, incl. 4 screws and anchor bolt, suitable for Walllight 2.0
65400170 suspension for ceiling installation (2x 150 cm wire cable Ø 1 mm, 2x suspension brackets, 2x profile brackets)
62398801 2x angle brackets for a 90° wall installation, aluminium, anodised, incl. 1 rounded head screw for attaching the brackets to the profile30×34×30mm (l×w×h)

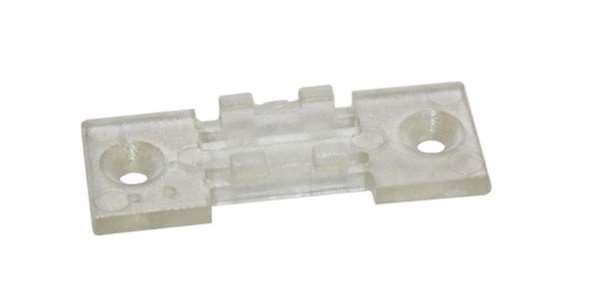

62399914 2x brackets, incl. 4 screws, dimensions: 34 x 13 x 5mm, suitable for GARgano, GARliano profile
62399906 holding set, 2x brackets + 2x screws, 306 stainless steel, suitable for GARgano, GARliano, CATania profile40×13,5×4mm (l×w×h)
62399438 mounting clip, profile groove incl. mounting accessories, for mounting bracket and cantilever, suitable for Pino HP82×11×17mm (l×w×h)
62398420 2x end cap incl. screws
62399816 reflectortape with a light reflection of >97%, sold by the metre, suitable for CATania profile15,5×0,4mm (w×h)
62397616 mounting profile 1m, suitable for Leuchten-profile rechteckig1000×34,5×1mm (l×w×h)
65300160 suspension for ceiling installation (2x 150cm wire cable Ø 1mm with M3 thread, 2x suspension brackets) incl. screw nuts1500×1×1mm (l×w×h)
65400100 suspension for ceiling installation (2x 150cm wire cable Ø 1mm with M4 thread, 2x mounting plates, 2x suspension brackets)1500mm (l)
65400150 suspension for ceiling installation (4x 150cm wire cable Ø 1mm with M4 thread, 4x mounting plates, 4x suspension brackets) for profile lenghts > 3m1500mm (l)
62397613 rope suspension with ceiling attachment, steel cable (only in conjunction with 62397612), suitable for Leuchten-profile rechteckig2000mm (l)
62397617 mounting profile 2m, suitable for Leuchten-profile rechteckig2000×34,5×1mm (l×w×h)
62399817 reflectortape with a light reflection of >97%, suitable for CATania profile10000×15,5×0,4mm (l×w×h)
62399705 1x retaining spring, suitable for BARdolino T profile40×100×17,5mm (l×w×h)
62399467 Angolo brackets set, 2 brackets, incl. 4 screws, suitable for BARdolino Angolo profile
62398426 1x retaining spring, short, for mounting housing, suitable for Walllight 3.0
62398427 1x retaining spring, long, for dry walling, suitable for Walllight 3.0
62399838 1x retaining spring, suitable for CATania profile40×27mm (l×w)
62397612 quick attachment for rear mounting cord system (only in conjunction with 62397612), suitable for Leuchten-profile rechteckig
62397618 2x connector, 8 screws, suitable for Leuchten-profile rechteckig
62397637 mounting clip for T profile high, suitable for Leuchten-profile rechteckig
62399946 clamp holder, grey, suitable for Pino Grande profile15,4×47,4mm (w×h)lichtgrau RAL 7035
50990190 mounting clip set, incl. 2 holding clips + 2 screws, high holding force, suitable for profiles of the BARdolino family14×20,81×9,1mm (l×w×h)
50990090 2x mounting clips, incl. screws, suitable for profiles of the BARdolino family12×19,3×8mm (l×w×h)
50990291 1x metal connector, suitable for profiles of the BARdolino family60×19,5×6,2mm (l×w×h)
50990191 2x mounting clips pivoted, incl. screws, suitable for profiles of the BARdolino family18,8×32,3×22,4mm (l×w×h)
50990091 2x mounting clips 45°, incl. screws, suitable for profiles of the BARdolino family12×15,4×18,6mm (l×w×h)
62399934 2x brackets 5cm, incl. screws and dowels, suitable for profiles of the BARdolino family
62399918 1x supermagnet holder incl. locking screw, suitable for GARgano, GARliano profile
62399919 1x profile connector, incl. locking screws, suitable for GARgano, GARliano, CATania profile45×10×2mm (l×w×h)
62399920 2x 45°-clips for mounting in corner, transparent, incl. screws, suitable for GARgano, GARliano profile
62399935 2x 45°-clips for mounting in corner, transparent, incl. 4 dowels + 4 screws, suitable for GARgano, GARliano profile
62399936 1x profile 90°-connector, incl. 2 locking screws, suitable for GARgano, GARliano profile30,4×30,4×2mm (l×w×h)
62399437 2x mounting clips, 2 screws, suitable for profiles of the Pino family
62399276 BARdolino R mini 2x plastic brackets, transparent, incl. 2 screws
62399419 GARliano flex mounting clips, 2 clips, 4 screws24,1×12,1mm (l×w)
