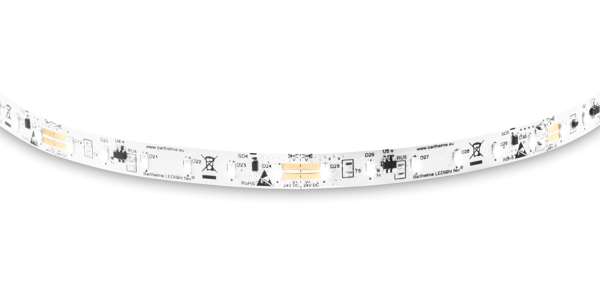

LEDLIGHT FLEX 10 8PF

  • binned according to 2 Step MacAdam per light colour
  • available in five white tones, from 2,300 K to 5,500 K and the single colours red, green, blue and amber
  • tool-free connection possible with plug connectors
  • LED chips with efficient heat management and good light yield
  • narrow LED pitch enables a homogeneous light line in combination with flat profiles and opal covers
  • with reverse polarity diode
  • with current limiter incl. temperature control, high amount of copper in FPC and 3M thermoconducting adhesive tape
  • estimated lifetime L70 at Tc < 80 °C: > 60,300 h


  • Channels: 1


System Input-Voltage Colour-Type Colour-Type Colour-Type Colour-Type Colour-Type LED/Meter Pitch Rolllength Max. feed Cutlength Connectiontype Connectiontype Beamangle Dimmable Max. Housing-Temperature Degreeof protection

ANr*ColourDescriptionColour-
Temperature
LumenPowerLumen/
Watt
Lumen/
Meter
CRIEEKDimensionsColour
consistency
Number
LED
Watt/
Meter
Lifespan
L70
Datasheets
50001029 super warm white | 823Cut2300K51lm0,5W102lm/W850lm/m83A++60×8×1,4mm (l×w×h)268W/m>60300h
50421629 super warm white | 823Reel2300K6375lm62,5W102lm/W850lm/m83A+7500×8×1,4mm (l×w×h)27508W/m>60300h
50001028 warm white | 827Cut2700K51lm0,5W102lm/W850lm/m83A++60×8×1,4mm (l×w×h)268W/m>60300h
50421628 warm white | 827Reel2700K6375lm62,5W102lm/W850lm/m83A+7500×8×1,4mm (l×w×h)27508W/m>60300h
50001033 weiß | 830Cut3000K51lm0,5W102lm/W850lm/m83A++60×8×1,4mm (l×w×h)268W/m>60300h
50421633 weiß | 830Reel3000K6375lm62,5W102lm/W850lm/m83A+7500×8×1,4mm (l×w×h)27508W/m>60300h
50001034 cold white | 840Cut4000K51lm0,5W102lm/W850lm/m83A++60×8×1,4mm (l×w×h)268W/m>60300h
50421634 cold white | 840Reel4000K6375lm62,5W102lm/W850lm/m83A+7500×8×1,4mm (l×w×h)27508W/m>60300h
50001015 daylight | 855Cut5500K51lm0,5W102lm/W850lm/m83A++60×8×1,4mm (l×w×h)268W/m>60300h
50421615 daylight | 855Reel5500K6375lm62,5W102lm/W850lm/m83A+7500×8×1,4mm (l×w×h)27508W/m>60300h
50001014 blueCut470nm8lm0,5W15lm/W130lm/m A60×8×1,4mm (l×w×h) 68W/m>30000h
50421614 blueReel470nm975lm62,5W16lm/W130lm/m D7500×8×1,4mm (l×w×h)27508W/m>30000h
50001013 greenCut525nm35lm0,5W71lm/W590lm/m A++60×8×1,4mm (l×w×h) 68W/m>30000h
50421613 greenReel525nm4425lm62,5W71lm/W590lm/m A7500×8×1,4mm (l×w×h)27508W/m>30000h
50001022 amberCut593nm19lm0,5W38lm/W320lm/m A++60×8×1,4mm (l×w×h) 68W/m>30000h
50421622 amberReel593nm2400lm62,5W38lm/W320lm/m B7500×8×1,4mm (l×w×h)27508W/m>30000h
50001011 redCut625nm18lm0,5W36lm/W300lm/m A++60×8×1,4mm (l×w×h) 68W/m>30000h
50421611 redReel625nm2500lm62,5W40lm/W330lm/m B7500×8×1,4mm (l×w×h)27508W/m>30000h
Please note: Insufficient cooling will damage the LEDs
ANrDescriptionDimensionsHousing/
colour
Datasheets
62397351 Scala Downlight1000×54,2×25mm (l×w×h)
62397352 Scala Downlight2010×54,2×25mm (l×w×h)
62397353 Scala Downlight3020×54,2×25mm (l×w×h)
62397355 Scala Downlight5030×54,2×25mm (l×w×h)
62397361 Scala Uplight1000×56,5×24mm (l×w×h)
62397362 Scala Uplight2010×56,5×24mm (l×w×h)
62397363 Scala Uplight3020×56,5×24mm (l×w×h)
62397365 Scala Uplight5030×56,5×24mm (l×w×h)
62398101 GARliano1000×19×10,2mm (l×w×h)
62398102 GARliano2010×19×10,2mm (l×w×h)
62398103 GARliano3020×19×10,2mm (l×w×h)
62398105 GARliano5030×19×10,2mm (l×w×h)
62398401 Walllight 2.0, aluminium anodised1000×23,35×37,12mm (l×w×h)
62398402 Walllight 2.0, aluminium anodised2010×23,35×37,12mm (l×w×h)
62398403 Walllight 2.0, aluminium anodised3020×23,35×37,12mm (l×w×h)
62398405 Walllight 2.0, aluminium anodised5030×23,35×37,12mm (l×w×h)
62398421 Walllight 3.01000×23×90mm (l×w×h)
62398422 Walllight 3.02010×23×90mm (l×w×h)
62398423 Walllight 3.03020×23×90mm (l×w×h)
62398425 Walllight 3.05030×23×90mm (l×w×h)
62399101 BARdolino high1000×18,4×19,7mm (l×w×h)
62399102 BARdolino high2010×18,4×19,7mm (l×w×h)
62399103 BARdolino high3020×18,4×19,7mm (l×w×h)
62399105 BARdolino high5030×18,4×19,7mm (l×w×h)
62399111 BARdolino H1000×18,4×30mm (l×w×h)
62399112 BARdolino H2010×18,4×30mm (l×w×h)
62399113 BARdolino H3020×18,4×30mm (l×w×h)
62399115 BARdolino H5030×18,4×30mm (l×w×h)
62399201 BARdolino flat1000×18,4×13mm (l×w×h)
62399202 BARdolino flat2010×18,4×13mm (l×w×h)
62399203 BARdolino flat3020×18,4×13mm (l×w×h)
62399205 BARdolino flat5030×18,4×13mm (l×w×h)
62399431 Pino HP1000×20,8×13,2×Ø20,8mm (l×w×h×d)
62399432 Pino HP2010×20,8×13,2×Ø20,8mm (l×w×h×d)
62399433 Pino HP3020×20,8×13,2×Ø20,8mm (l×w×h×d)
62399435 Pino HP5030×20,8×13,2×Ø20,8mm (l×w×h×d)
62399441 Pino Solo1000×20,8×13,2×Ø20,8mm (l×w×h×d)
62399442 Pino Solo2010×20,8×13,2×Ø20,8mm (l×w×h×d)
62399443 Pino Solo3020×20,8×13,2×Ø20,8mm (l×w×h×d)
62399445 Pino Solo5030×20,8×13,2×Ø20,8mm (l×w×h×d)
62399461 BARdolino Angolo1000×23,7×16,7mm (l×w×h)
62399462 BARdolino Angolo2010×23,7×16,7mm (l×w×h)
62399463 BARdolino Angolo3020×23,7×16,7mm (l×w×h)
62399465 BARdolino Angolo5030×23,7×16,7mm (l×w×h)
62399471 Soffitto, aluminium anodized1000×28,4×30mm (l×w×h)
62399472 Soffitto, aluminium anodized2010×28,4×30mm (l×w×h)
62399473 Soffitto, aluminium anodized3020×28,4×30mm (l×w×h)
62399475 Soffitto, aluminium anodized5030×28,4×30mm (l×w×h)
62399501 BARdolino T1000×35,2×25mm (l×w×h)
62399502 BARdolino T2010×35,2×25mm (l×w×h)
62399503 BARdolino T3020×35,2×25mm (l×w×h)
62399505 BARdolino T5030×35,2×25mm (l×w×h)
62399531 BARdolino Muro1000×18,4×37,3mm (l×w×h)
62399532 BARdolino Muro2010×18,4×37,3mm (l×w×h)
62399533 BARdolino Muro3020×18,4×37,3mm (l×w×h)
62399535 BARdolino Muro5030×18,4×37,3mm (l×w×h)
62399581 BARdolino Fondo1000×58,5×9mm (l×w×h)
62399582 BARdolino Fondo2010×58,5×9mm (l×w×h)
62399583 BARdolino Fondo3020×58,5×9mm (l×w×h)
62399585 BARdolino Fondo5030×58,5×9mm (l×w×h)
62399591 BARdolino Laminato, BARdolino Laminato aluminium luminaire profile1000×30×8,9mm (l×w×h)
62399592 BARdolino Laminato, BARdolino Laminato aluminium luminaire profile2010×30×8,9mm (l×w×h)
62399593 BARdolino Laminato, BARdolino Laminato aluminium luminaire profile3020×30×8,9mm (l×w×h)
62399595 BARdolino Laminato, BARdolino Laminato aluminium luminaire profile5030×30×8,9mm (l×w×h)
62399811 CATania 3030, CATania 3030 Profile1000×30×30mm (l×w×h)
62399812 CATania 3030, CATania 3030 Profile2010×30×30mm (l×w×h)
62399813 CATania 3030, CATania 3030 Profile3020×30×30mm (l×w×h)
62399815 CATania 3030, CATania 3030 Profile5030×30×30mm (l×w×h)
62399831 CATania 3030 T1000×40×30mm (l×w×h)
62399901 GARgano1000×17,9×9,5mm (l×w×h)
62399902 GARgano2010×17,9×9,5mm (l×w×h)
62399903 GARgano3020×17,9×9,5mm (l×w×h)
62399905 GARgano5030×17,9×9,5mm (l×w×h)
62399940 Pino Grande profile1000×Ø38mm (l×d)opal white
62399942 Pino Grande profile2010×Ø38mm (l×d)opal white
62399944 Pino Grande profile3020×Ø38mm (l×d)opal white
Please consider linear extension with temperature variations
ANrDescriptionDatasheets
50070201 LED plug-in system, LED stripe plug-in 8 mm, 2 pole, 50 cm strands with free wire ends for connecting the stripe without tools
50070203 LED plug-in system, LED stripe connector 8 mm, for connecting 2 pole and 4 pole stripes without tools
50070204 LED plug-in system, LED stripe connector 8 mm with 40 mm cable, for connecting 2 pole and 4 pole stripes without tools
50990721 LED cable and confectioning, cable 2 pole, with tin plated free wire ends - soldered to LEDlight flex
50990722 LED cable and confectioning, cable 2 pole, with tin plated free wire ends - soldered to LEDlight flex
50990723 LED cable and confectioning, cable 2 pole, with tin plated free wire ends - soldered to LEDlight flex
51991012 LED cable and confectioning, cable with AR connector 100 cm 2 pole - soldered to LEDlight flex
50070201, 50070203, 50070204: Detailled processing notes see datasheet
